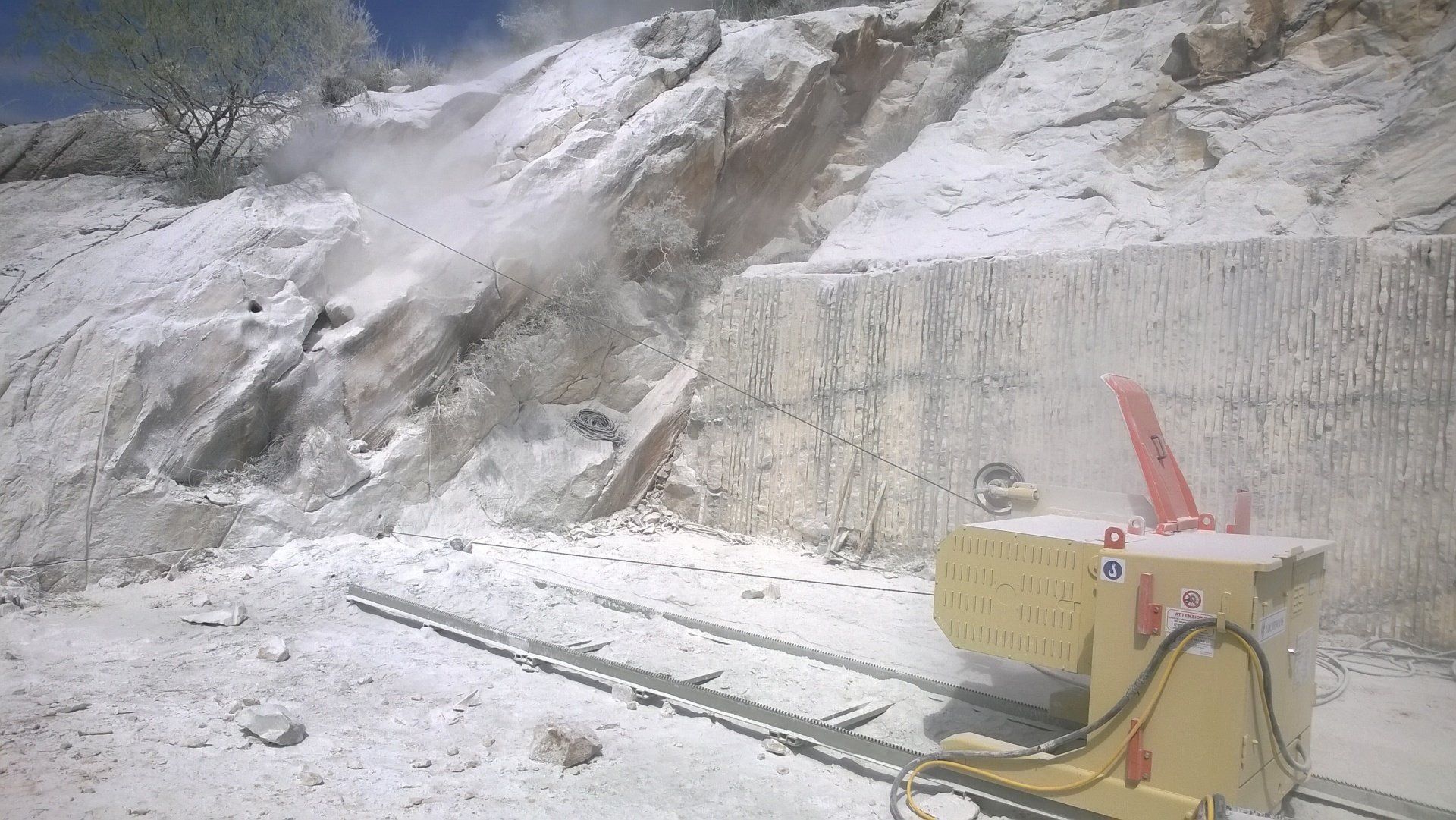

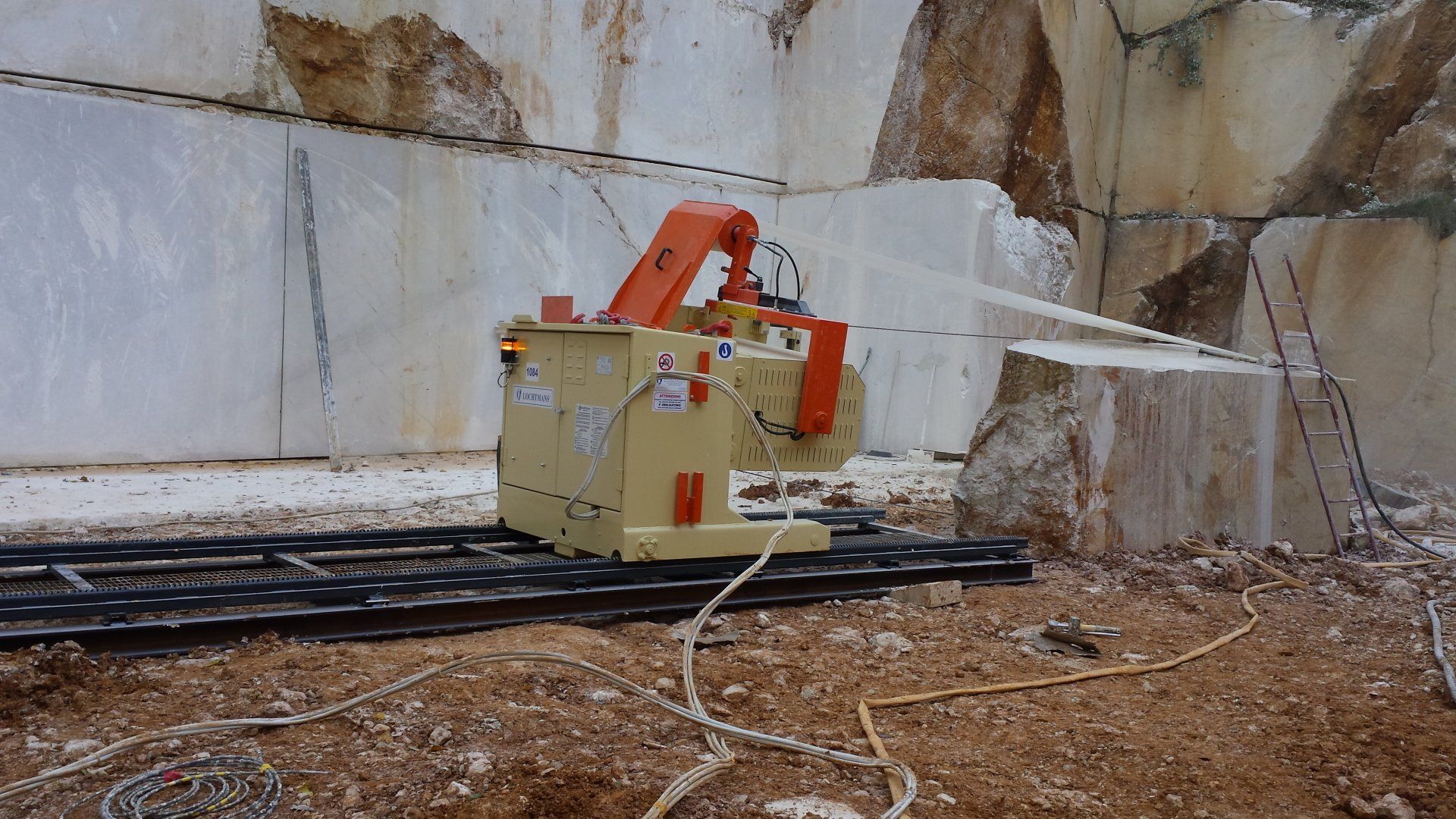

A solid structure and high-quality components are the factors that make the LGR5 diamond wire saw machine suitable for making large and particularly difficult cuts in marble and stone quarries in general. The machine has a motor fly-wheel unit which rotates 360° and moves horizontally and vertically; this allows the machine to crewate two parallel cuts of 1.45 mt. with a single position. The movements are hydraulic and generated from the remote-control panel. The machine is moved by means of a gearmotor, toothed driving wheels and slotted tracks, which generate and guarantee excellent stability of the machine during all cutting operations.

SAFETY PROTECTIONS

Lochtmans's diamond wire machines are equipped with accident prevention means to avoid any risks taken by those who work near the machines, as the breaking of a diamond wire can generate the projection of circuit elements (pearls, spacers springs or parts of a cable) and a possible whiplash of the broken cable.

REMOTE CONTROL PANEL

The adjustment and control of the machine takes place via the classic control panel that can be remotely positioned with a 15 mt. long connection cable. It carries out all positioning, adjustment the machine, control and cutting operations. The remote-control panel is equipped with a convenient positioning stand and a box with a closing door. The switchboard is equipped with an emergency button.
